Yeni
WTB9-3P3261 1054306
6.498,78TL
KDV Hariç: 5.415,65TL
- Stok Yok: Var
- Marka: Sick
- Ürün Kodu: WTB9-3P3261
Ücretsiz Kargo
10.000TL Üzeri Kargo Bedava
Banka Havalesi
Banka havalesinde ekstra %4 indirim imkanı
Hızlı Teslimat
Maksimum 2 İş Günü İçinde Kargoya Verilir
Güvenli Alışveriş
256BİT SSL Sertifikası ile Koruma

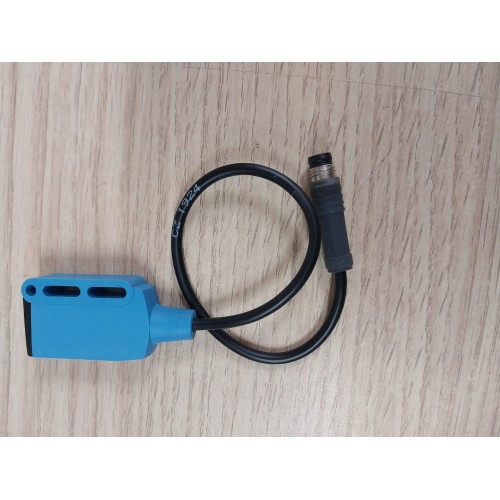

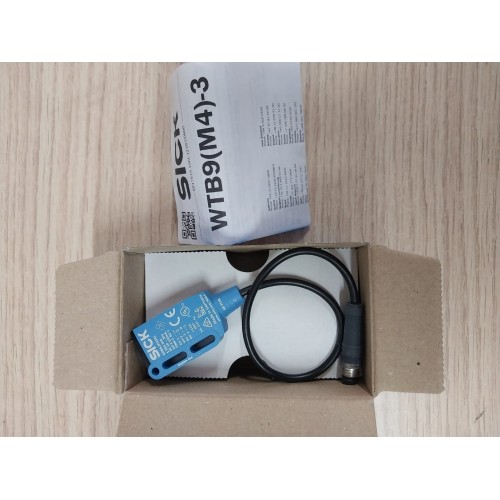

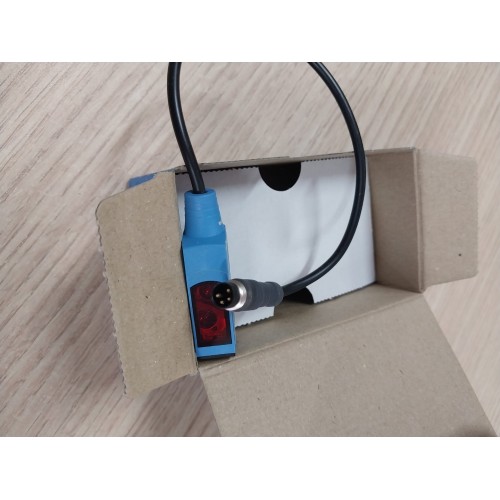

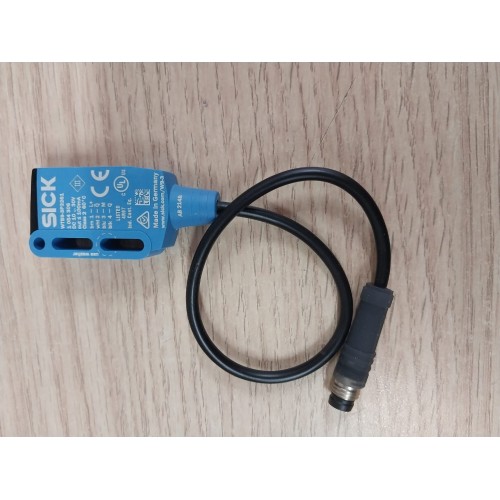

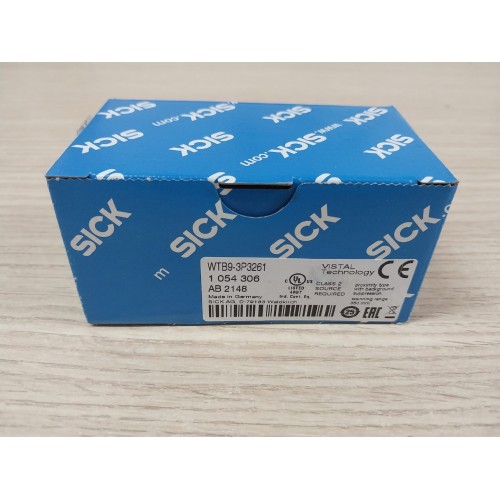

WTB9-3P3261 1054306 Sick Mesafe Sensörü 350mm algılama PNP Çkış
| Supply voltage UB | 10 V DC ... 30 V DC 1) |
| Ripple | < 5 Vpp 2) |
| Current consumption | 30 mA 3) |
| Switching output | PNP 4) |
| Output function | Complementary |
| Switching mode | Light/dark switching 4) |
| Output current Imax. | ≤ 100 mA 5) |
| Response time | < 0.333 ms 6) |
| Switching frequency | 1,500 Hz 7) |
| Connection type | Cable with M8 male connector, 4-pin, 120 mm 8) |
| Cable material | Plastic, PVC |
| Conductor cross section | 0.14 mm² |
| Circuit protection | A 9) B 10) C 11) |
| Protection class | III |
| Weight | 80 g |
| Housing material | Plastic, VISTAL® |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP66 IP67 IP69K |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| UL File No. | NRKH.E181493 |
