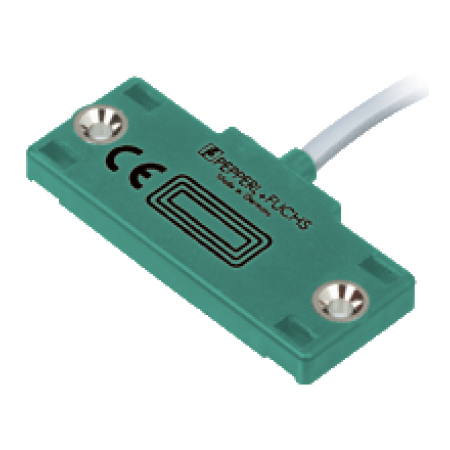

CBN10-F46-E2-0,4M-V3 Kübik Plastik Gövde, PNP NO 10mm Algılama, 0,4m Kablo M8 3 Pin Konnektör, Çıkıntılı Montaj, Kapasitif Sensör
0,00TL
KDV Hariç: 0,00TL
- Stok Durumu: Var
- Marka: Pepperl Fuchs
- Ürün Kodu: CBN10-F46-E2-0,4M-V3
Ücretsiz Kargo
10.000TL Üzeri Kargo Bedava
Banka Havalesi
Banka havalesinde ekstra %4 indirim imkanı
Hızlı Teslimat
Maksimum 2 İş Günü İçinde Kargoya Verilir
Güvenli Alışveriş
256BİT SSL Sertifikası ile Koruma
| General specifications | ||
|---|---|---|
| Switching function | Normally open (NO) | |
| Output type | PNP | |
| Rated operating distance | 10 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 ... 7 mm | |
| Nominal ratings | ||
| Installation conditions | ||
| B | 5 mm | |
| C | 20 mm | |
| F | 20 mm / 50 mm | |
| Operating voltage | 10 ... 30 V DC | |
| Switching frequency | 0 ... 5 Hz | |
| Hysteresis | 1 ... 10 typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | ≤ 2 V | |
| Voltage drop at IL | ||
| Voltage drop IL = 10 mA, switching element on | 0.8 ... 2.2 V typ. 1.4 V | |
| Operating current | 0 ... 100 mA | |
| Lowest operating current | 0 mA | |
| Off-state current | 0 ... 0.5 mA typ. 0.01 mA | |
| Off-state current TU =40 °C, switching element off | ≤ 100 µA | |
| No-load supply current | ≤ 15 mA | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1210 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical specifications | ||
| Connection type | Cable connector M8 x 1 , pigtailed PVC , L = 362 mm ± 5 mm | |
| Core cross-section | 0.14 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
| CAD | Dosya Tipi | Dosya Boyutu | |
|---|---|---|---|
| 3-D model in IGS format / 3-D-Modell im IGS-Format | IGS | 179 KB | |
| 3-D model in STP format / 3-D-Modell im STP-Format | STP | 149 KB | |
| CAD Portal / CAD Portal | LINK | --- | |
| EPLAN | |||
| EPLAN Data Portal / EPLAN Data Portal | LINK | --- | |
| EPLAN macro EDZ / EPLAN Makro EDZ | EDZ | 67 KB | |
| CAD | Dosya Tipi | Dosya Boyutu | |
|---|---|---|---|
| 3-D model in IGS format / 3-D-Modell im IGS-Format | IGS | 179 KB | |
| 3-D model in STP format / 3-D-Modell im STP-Format | STP | 149 KB | |
| CAD Portal / CAD Portal | LINK | --- | |
| EPLAN | |||
| EPLAN Data Portal / EPLAN Data Portal | LINK | --- | |
| EPLAN macro EDZ / EPLAN Makro EDZ | EDZ | 67 KB | |
| Algılama | |
| Mesafesi | 10 mm ... < 20 mm |
| Bağlantı. | |
| Prensibi | 3 Tel |
| Çıkış | |
| Fonksiyonu | (NO) |
| Gövde | |
| Materyali | Plastik |
| Kontrol | |
| Çıkış | PNP |
| Modül | |
| Tipi | 20x50x5 mm (F46) |
| Montaj | |
| Şekli | Kablolu M8 3 Pin Soketli |
| Voltaj | |
| Girişi | DC |
